Sinewave Inverter
An Inverter has become almost a necessity now. Outside Metropolitan cities, the Utility power is erratic and unreliable. This creates lot of troubles to people. Especially in places where the climate is hot and humid; power loss of even a few minutes causes a lot of discomfort.
Power failure at nights leads to sleepless night or at least disturbed sleep. Working in darkness is not everybody's cup of tea.
Offices suffer in power failure because of reduced light and increased heat in the atmosphere.

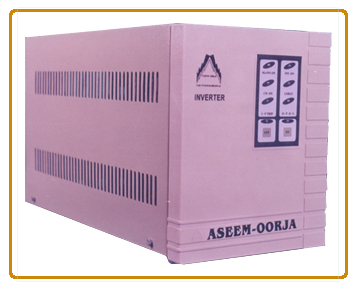

The solution is handy : ASEEM-OORJA inverter.
Designed to be rugged and user friendly, the inverter provides power back up for long hours as and when necessary. Specially designed charger ensures a long life of the battery.
ASEEM-OORJA service is well known in power field. Experience the difference.
- • Fully solid state
- • Short circuit protection
- • Rugged,reliable and automatic
- • Battery protected from overcharge & over discharge
Technical Specifications
| Capacity | 800 VA | 1.4 KVA | 3.0 KVA | 5.0 KVA | |
|---|---|---|---|---|---|
| DC Bus | 12 V | 24 V | 48 V | 96 V | |
| Input | 230 V AC, 1 phase | ||||
| Output | 230 V AC, 1 PHase, 50 Hz | ||||
| Regulation | + 2 % | ||||
| Waveform | Sinusoidal | ||||
| Efficiency | Better than 80% | ||||
| Power Factor | 0.8 lagging to Utility | ||||
| Indications | Mains ON, Mains Failed, Charger ON | ||||

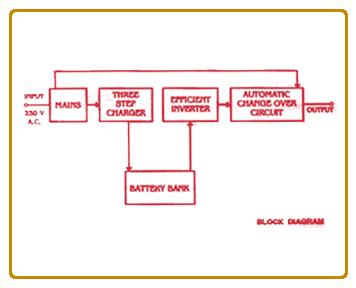

| Charging | Three Step Current Mode Battery status monitoring type. | ||||
| Protection | |||||
Salient Features
- • No high frequency harmonics in output.
- • High MTBF due to Low Component Count.
- • Fully Protected against Overloads.
- • Sine Wave Output : Most suitable for delicate instruments.
- • Tropicalized, State of The Art Design.
- • Handles Inductive Loads also.
- • Designed for Long & Continuous back-up Periods.
Higher Capacity Sinewave Inverters are available on request
