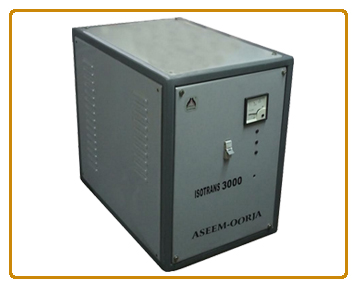

Isolation Transformer
Isolation Transformers are needed whenever a clean Power is required. The instruments that are sensitive to Electrical Noise like Heart Beat Monitor, Ultra Sound Instruments, Giga Counters, UHF Transmitters and Receivers; Isolation Transformer is an excellent solution.
This transformer is built with great care and caution. The Primary and Secondary are split and Inter-Winding Capacitance is considerably reduced by incorporating a Special Shielding Method. The Magnetic Currents are also controlled using the Stamping Grounding Method.
Capacities Available from 1.0 KVA to 100 KVA.
Features
- • Isolates the equipment from noisy powerline.
- • Reduces powerline Noise, Surges, Spikes & Transients.
- • High Insulation resistance.
- • Provides the complete Electromagnetic & Electro static shielding.
Technical Specifications
| Ratio | 1 : 1 |
|---|---|
| Load Regulation | Within 4% |
| DC Isolation | Over 1000 Mega Ohms between any windings or windings to ground |
| Interwinding Capacitance | Very low |
| Break Down Strength | 2.5 KV |
| Acceptable Line Frequency | 47 to 63 Hz |
| Efficiency | Greater than 95% |
