Hi Frequency UPS

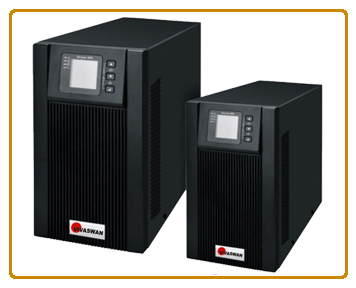

In today’s world, the space is getting lesser and lesser. The small offices, small dispensaries are facing increasing space constraint. There was a need for small and compact UPS. The Vivaswan model UPS from ASEEM POWER TEKNEEKS PVT LTD is just that. It works on high frequency above audio range and hence eliminates the need of a transformer. This greatly reduces the size of the UPS plus adding to the efficiency. Completely based on Cards, it is compact and easy to service.

As required today, the Input Current THD is very low, thus maintaining a clean line for other gadgets.

Technical Specifications

Technology	Sine PWM with IGBT & LCD/LED Display
Capacity	1.0 KVA to 10 KVA
Input	Window	170 to 270 V AC (1PH)
	Frequency	45 Hz to 55 Hz
	DC Bus	36 V to 240 V DC (Depending on Model)
Ouput	Voltage	230 V +1% (1PH)
	Frequency	50 Hz +1% Asynchronous Mode 47 Hz to 53 Hz Synchronous Mode
	Load Power Factor	0.8 Lagging to Unity
	Waveform	Pure Sine Wave
	Distortion	Less than 5%
Charging	Type	CVCC
Transfer Time	Mains to Battery & Back	0 Sec
Efficiency	AC in - AC out	Better than 85% (AC in - AC out)
Protections	Input	Mains Fail , Mains Abnormal, DC Under / Over Voltage
	Output	Under / Over Voltage , Overload
Display	Multifunction LCD Display
Alarms	Overload, Battery Low, System Trip
Cooling	Forced Air Cooling
Humidity	Less than 90% Non Condensing
