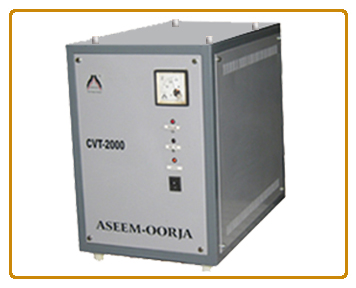

Constant Voltage Transformer
There are times when one feels that a stabilizer is not enough. After all, a stabilizer can correct voltage with a certain finite speed. We would think that our instruments are connected to a stabilizer and are unaware of the fact that it is stilt passing on the spikes, voltage surges, glitches, noise etc. Which are so short, that it cannot be corrected by a stabilizer.
What then? The answer is a C.V.T. from ASEEM-OORJA This works on magnetic saturation principle, resonating with a tank circuit of high Q factor. When incoming Mains voltage is low the capacitor provides the necessary additional gain in power, keeping the output voltage steady. On the other hand , when the mains voltage is high the leakage reactance drops the difference of voltage. This correction of voltage is instantaneous even for sudden dips and spikes.
Capacities Available from 1.0 KVA to 10.0 KVA.
Ask for Custom Built CVT.
Features
- • Proven technology.
- • High reliability.
- • Fast response.
- • Output short circuit protected.
- • Rugged Industrial Design.
- • High efficiency.
- • CMRR & DMRR noise rejection up to 100 dB.
- • Can handle inductive loads.
Technical Specifications
| Input Voltage Range | 170 - 270 Volts A. C. 1PH. |
|---|---|
| Frequency | 50 Hz + 2.5 Hz |
| O/P Voltage | 230 V AC ( Adjustable to 220 V or 240 V ) |
| Line Regulation | +2% at rated load |
| Load Regulation | 2% |
| Waveform | Sinusoidal |
| Response Time | 20 ms. |
| Efficiency | Better Than 85 % |
| Total Galvanic Isolation | 2 KV |
| Energy Storage | |
| Protection |
