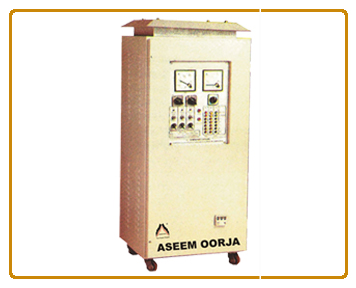

Servo Controlled Voltage Stabilizer

Servo Contrrol Voltage Stabilizers are highly efficient Voltage regulators that work equally well on any kind of load. It consists of a Detector; a switching unit; a motorized Auto Transformer and Cut Off Circuit. In case of any deviation from the set voltage; the detector send an error signal to the Control Circuit that in turn drives a motor to correct the voltage using the windings on Auto Transformer.

Technical Specifications

Servo Controlled Voltage Stabiliser	Single PHase	Three PHase
Capacity	2.0 KVA to 30 KVA	3.0 KVA to 150 KVA
Input
Range	170 V to 270 VAC (or as per your requirement)	340 V to 470 VAC (or as per your requirement)
Frequency	45 Hz to 55 Hz	45 Hz to 55 Hz
Under Voltage Trip	170 V	340 V
Over Volatage Trip	270 V	470 V
OUTPUT
Voltage	230 V / 240 V (adjustable)	400 V / 415 V (adjustable)
Regulation	+ 1%	+ 1%
Waveform Distortion	Nil	Nil
Rate of Correction	25 V / Sec	25 V / Sec
Efficiency	Better than 95%	Better than 95%
Ambient Tempearure	0 to 50° C max	0 to 50° C max
Protections	Over Voltage,Under Voltage Overload,Shortcircuit	Over Voltage,Under Voltage Overload,Shortcircuit, Signle PHasing Preventor
Indications	Voltmeter, Mains ON O/P ON, U/V, O/V	Voltmeter, Mains ON O/P ON, U/V, O/V
Optional	Generator Compatibility. Time Delay for O/P Power. RFI Filter. Ammeter for Load Current. Digital Meters. Isolation Transformer.	Generator Compatibility. Time Delay for O/P Power. RFI Filter. Ammeter for Load Current. Digital Meters. Isolation Transformer.
Specifications are subject to change without notice
