Lift Inverters

Lifts and elevators have now become a part of life with increasing numbers of high rise buildings coming up on a daily basis. As would be the case, the lifts are bettering in technology and comfort. However all the latest technology is futile in the face of power loss.

Imagine being stuck up in a lift due to power failure. With modern lifts being completely closed there is no way to communicate with outside world as your voice won’t reach them. Alarm will not sound due to power failure.

Isn’t there a back-up system ?
There is !

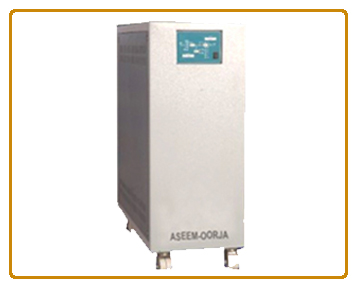

PROTON Lift Inverter from ASEEM POWER TEKNEEKS PVT. LTD.
With State of the Art technology the Proton Inverter provides power to the lifts for a period decided by the batteries. Well what if the batteries are discharged while the lift is in motion? No worry! The Proton Lift Inverter has a built in ARD or Automatic Rescue Device that will allow the lift to reach the nearest floor in case of emergency.

Backed up with the reputed service of Aseem Power Tekneeks Pvt Ltd., the Proton Lift Inverter makes an ideal solution to power failure for lifts.

Technical Specifications

Technology	IGBT
Capacity	6.0 KVA to 75 KVA
Input	Window	3 - PHase, 415 Volts +15%
	Frequency	50 Hz +6%
	DC Bus	72 V to 360 V DC (Depending on Model)
Ouput	Voltage	415 V +1% , 3-PHase
	Frequency	50 Hz +0.1%
	Load Power Factor	0.8 Lagging to Unity
	Waveform	Pure Sine Wave
	Distortion	Less than 3%
	Crest Factor	3 : 1
PHase Displacement	120 degree + 1 degree
